Start with the hybrid: 2,000 pounds with a braked trailer. The gas turbo steps up to 3,500 pounds in SE, SEL, Limited and Calligraphy form, and the XRT to 4,500. Leave the trailer brakes off and every version shares a 1,650-pound limit.

A light, unbraked utility trailer suits either powertrain; a heavier boat points toward the gas turbo, and the heaviest loads toward the XRT. All ratings assume a properly equipped vehicle, and Hyundai sells the hitch as an accessory.

• Hybrid: 2,000 lb with trailer brakes
• Gas SE, SEL, Limited, Calligraphy: 3,500 lb with trailer brakes
• XRT: 4,500 lb with trailer brakes
• 1,650 lb without trailer brakes, any Santa Fe

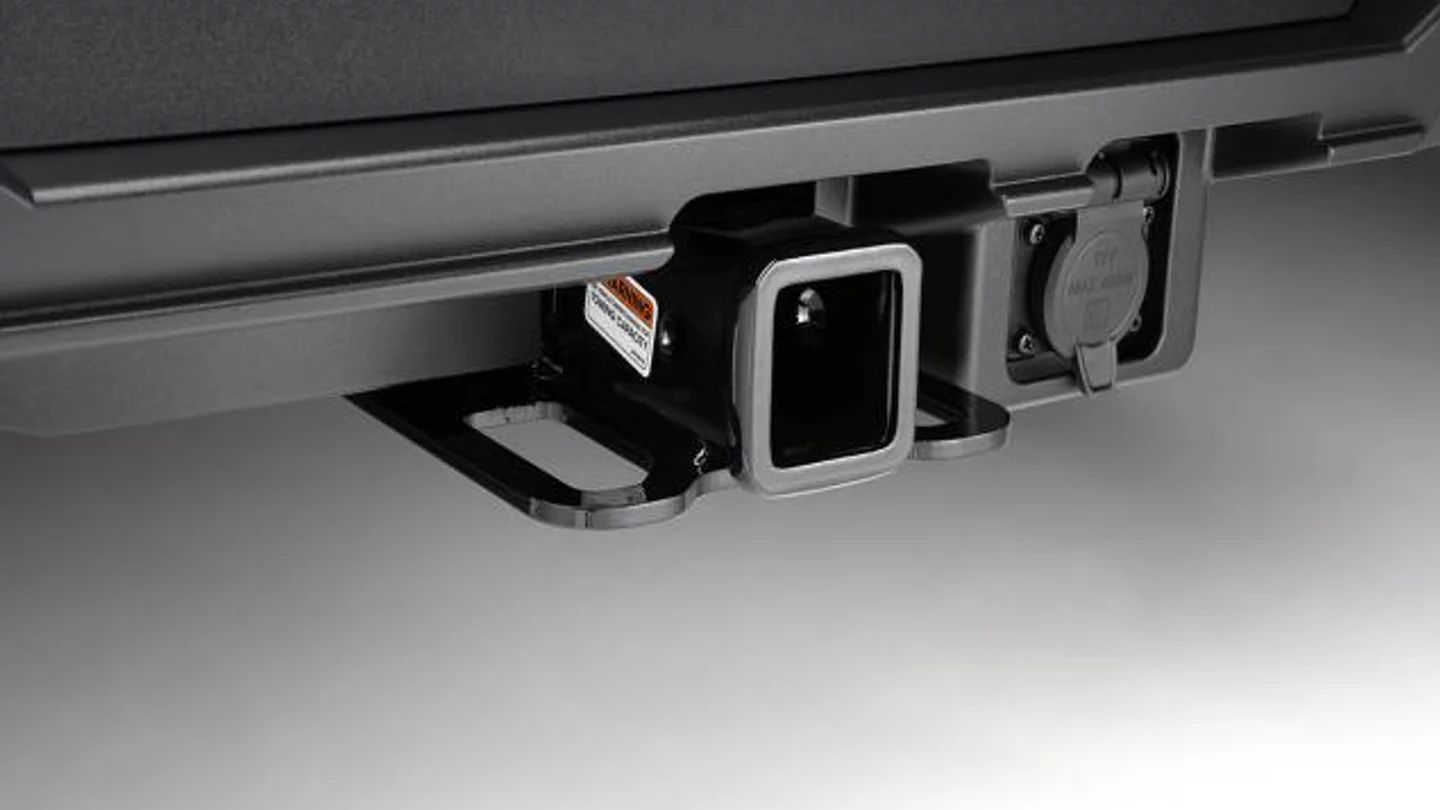

• Tow hitch available as an accessory

Payment Calculator

Trailer Sway Control comes on every Santa Fe, and the gas turbo’s 311 lb-ft and eight-speed automatic handle the pulling. HTRAC all-wheel drive, available on both powertrains, can send up to half its torque to the rear, useful on a wet launch ramp.

Every Santa Fe comes pre-wired for a trailer, and Hyundai offers the hitch and ball mount together as the Tow & Go Package. The XRT adds Terrain Mode settings, all-terrain tires and 8.3 inches of ground clearance for sand and gravel.

• Trailer Sway Control standard
• 311 lb-ft from the gas turbo
• HTRAC AWD on either powertrain
• Trailer pre-wiring standard
• Tow & Go Package accessory
• 8.3 in of ground clearance on XRT

Apply For Financing

Hybrid or turbo, the numbers match: 79.6 cubic feet with both rear rows folded, 40.5 with the third row down, and 14.6 behind a full third row. The third row folds into the floor in a 50/50 split, and the second row folds by remote release from the back.

The hands-free smart liftgate opens automatically, the underfloor tray keeps smaller items in place, and roof rails on the SEL and above are rated for 220 pounds.

• 79.6 cu ft behind the first row
• 40.5 cu ft behind the second row
• 14.6 cu ft behind the third row
• Same cargo space for hybrid and gas
• 50/50 folding third row
• 220-lb roof rail capacity on SEL and up
